Electronics and control boards
Electronics and control boards
Boards with a similar layout may use different revisions, firmware, connectors, or voltage requirements. Exact identification is required before compatibility can be assessed.
Product fit
Confirm the exact requirement.
Similar-looking parts can differ in dimensions, connections, chemistry, revision, or machine compatibility.
Typical items

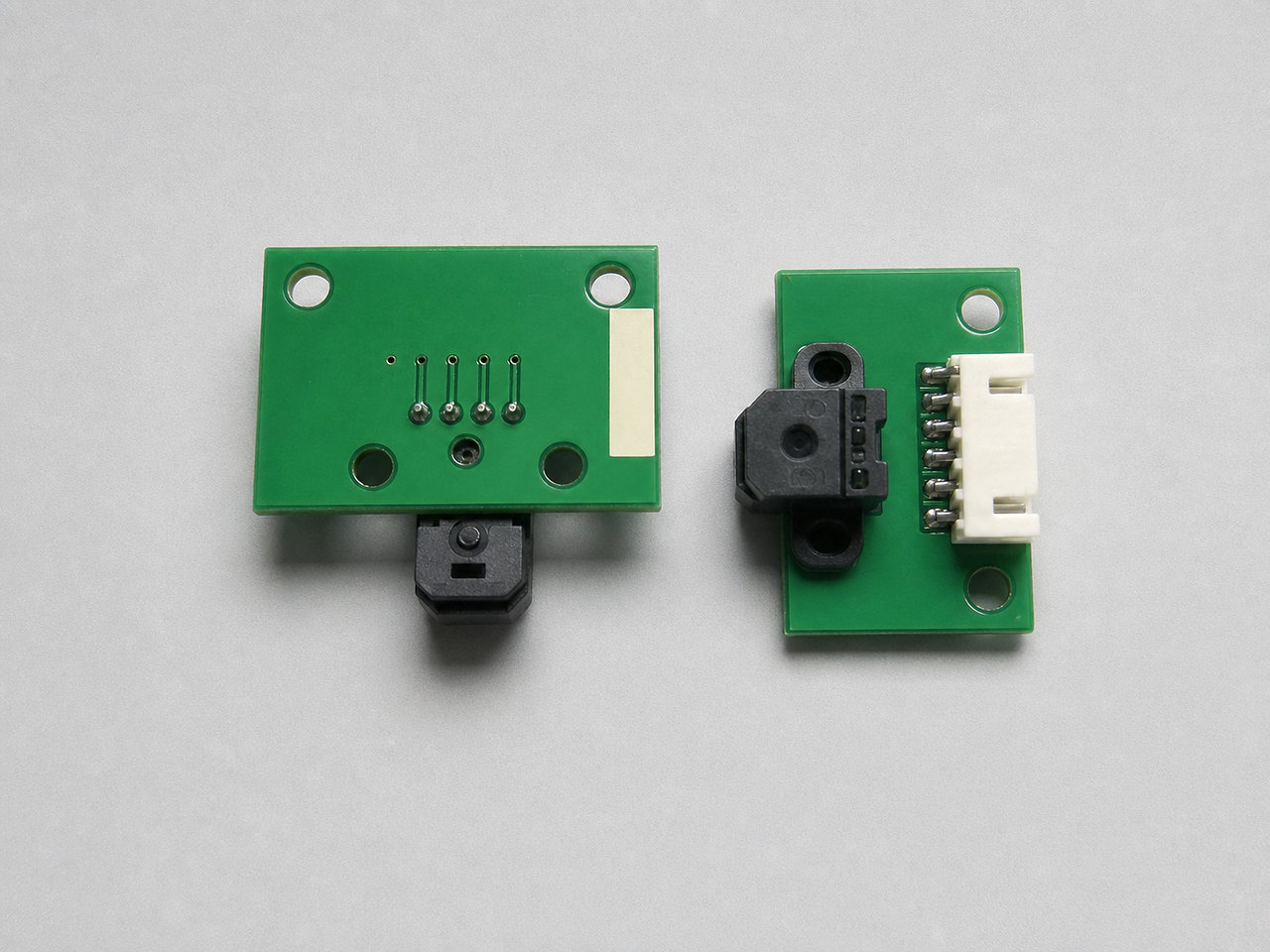

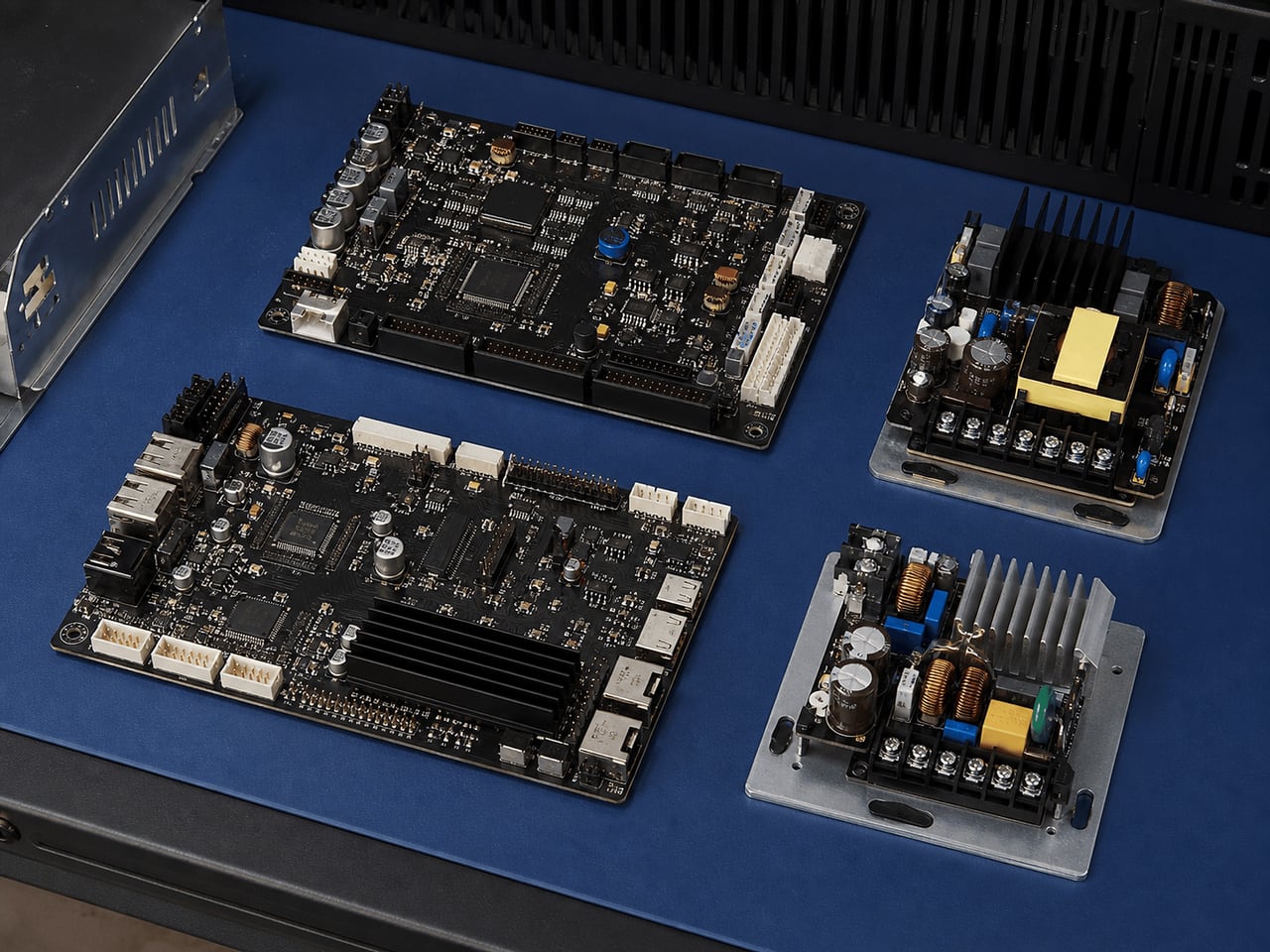

- Printer controller boards
- Carriage and interface boards
- Power and switching modules

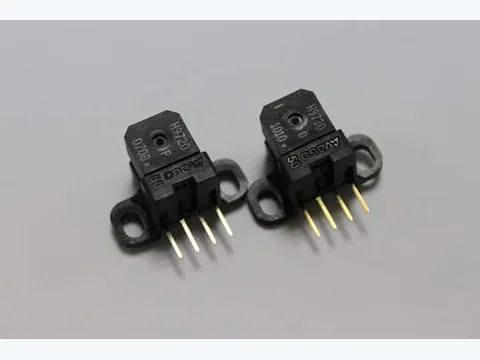

- Relays, encoder sensors, and electronic components
What to send
- Machine brand and model
- Board function
- Full board label and revision
- Clear front and back photographs
View the full enquiry checklist
- Connector positions and cable references
- Input and output voltage details
- Fault symptoms and error information
Board and module identification
Confirm revision, connectors, and electrical requirements.
Two boards can share the same outline while using a different revision, firmware expectation, connector layout, or voltage. Clear identification reduces the risk of treating a similar board as an interchangeable one.
Confirmation steps
- Photograph the complete front and back, including labels, revision marks, and connector positions.
- Record the machine model, board function, voltage details, error message, and circumstances of the fault.
- Compare connector orientation and mounting points before any compatibility conclusion is made.
Selected examples

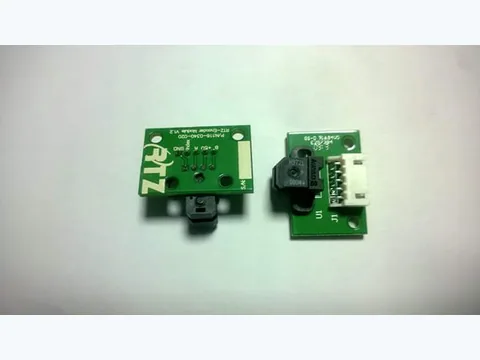

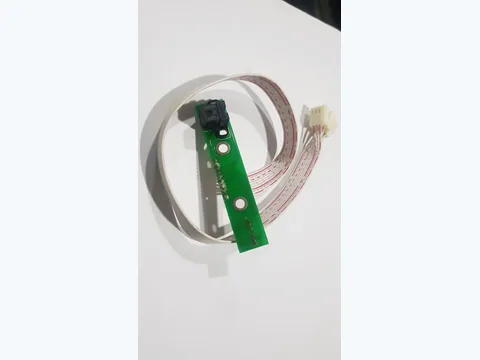

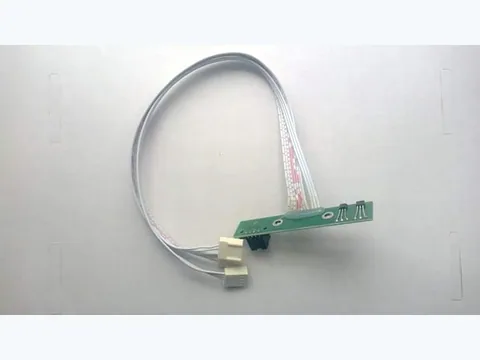

See the category before confirming the part.
Product enquiry
Identify an electronic component
Share the machine, board label, revision, connectors, voltage, and symptoms.
